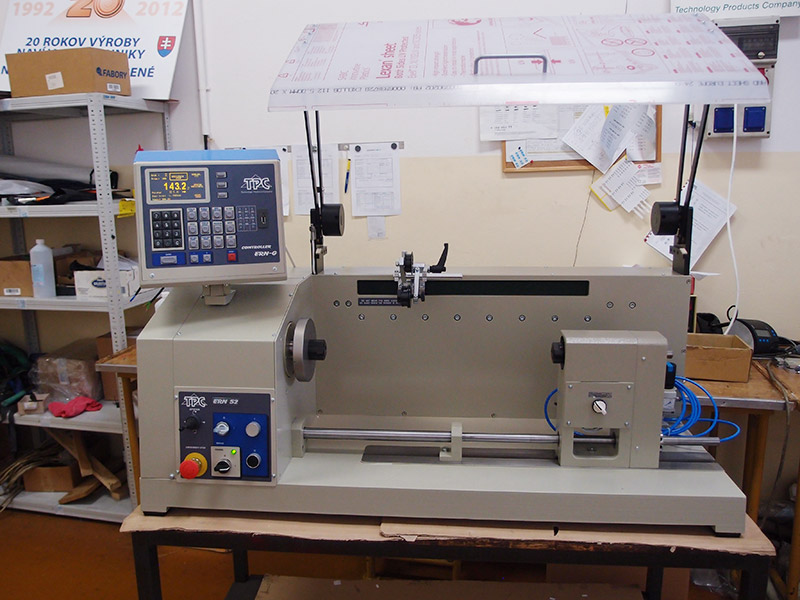

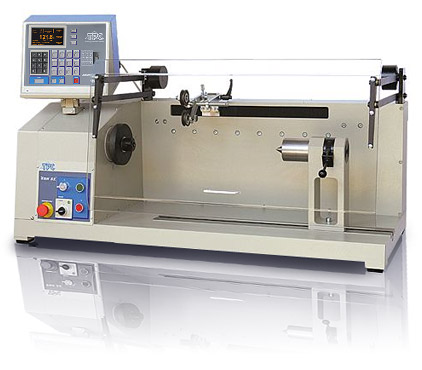

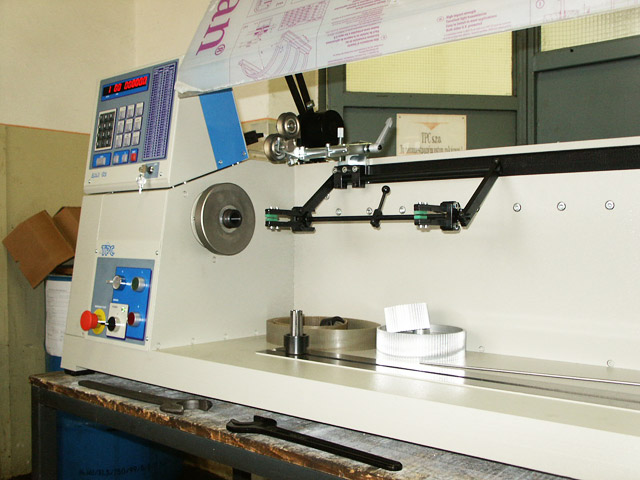

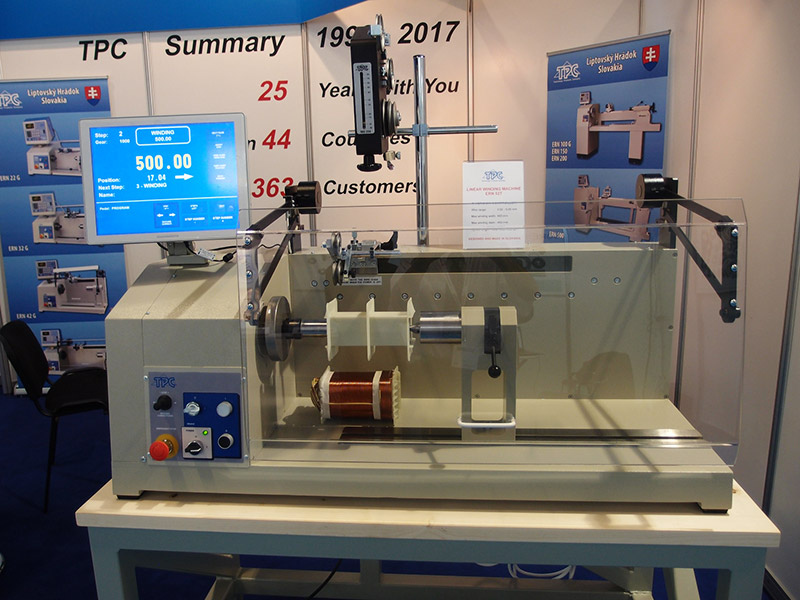

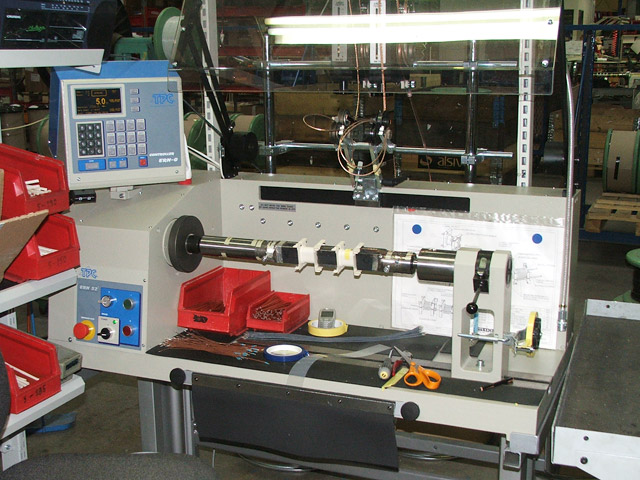

Wire winding machine with big working space and high torque.
Wide range of application for winding simple or complicated coils, multichambers coils, trapezoidal or asymmetric winding and flat wires.
- Torque 30 Nm, suitable for wire 0,02 – 5,0 mm and flat wires
- Microprocessor controlled winding cycle
- All winding parameters programmable
- Accurate reversible counting and spindle positioning
- AC servo drive guarantees an excellent Start - Stop regime
- Simple operation, accuracy and reliability
- Optional controller G and T version
Specification
ERN 52
ERN 52S
Wire range:
0,02 - 5
0,02 - 5
mm
Pitch range:
0,008 - 40
0,008 - 40
mm/rev.
Winding width:
0,1 - 450
0,1 - 450
mm
Turn resolution:
0,01
0,01
rev.
Accuracy of spindle stop:
0,01
0,01
rev.
Speed range:
4000 / 1000 / 500
4000 / 1000
rev./min.
Torque:
3,5 / 15 / 30
7 / 30
Nm
Distance between centre:
650
650
mm
Max.winding diameter:
450
450
mm
Power supply:
3 x 400 / 50 - 60
3 x 400 / 50 - 60
V / Hz
Dimensions:
1235 x 530
1235 x 530
mm
Weight:
180
180
kg
