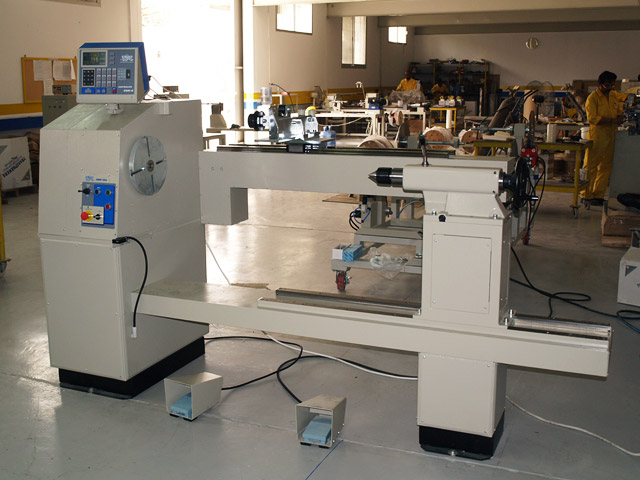

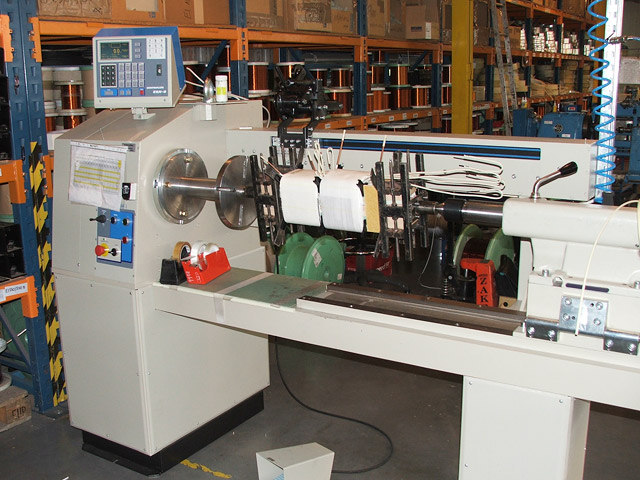

The model designed for winding of large coils and distribution transformers.
Wide range of application for winding simple or complicated coils, multichambers coils, trapezoidal or asymetric winding.
- Max. torque 540 Nm
- Microprocessor controlled winding cycle
- All winding parameters programmable
- Accurate reversible counting and spindle positioning
- AC servo drive guarantees an excellent Start - Stop regime
- Simple operation, accuracy and reliability
- Easy switching to manual winding regime
- Back-UPS for optimal power protection
- Standard accessories: wire guide, pedal and moving tailstock (optional also tipping)

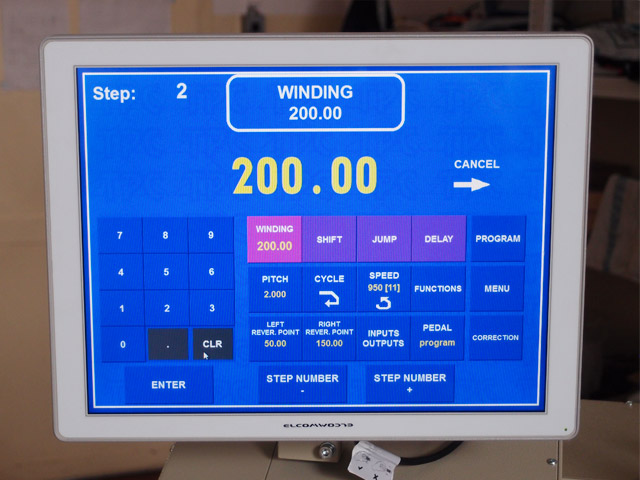

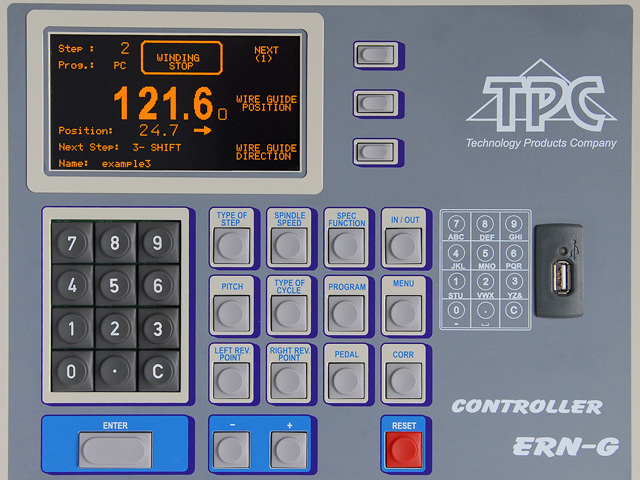

- Optional controller G and T version
Specification
Pitch range:
0,008 - 160,0
mm/rev.
Winding width:
400 / 800 / 1000 / 1200
mm
Distance between centres:
800 / 1200 / 1400 / 1600
mm
Max.winding diameter:
600 / 800 / 1000
mm
Accuracy of spindle stop:
0,01
rev.
Turn resolution:
0,01
rev.
Speed range:
150 / 75
rev./min.
Torque:
270 / 540
Nm
Load between centres:
400
kg
Power supply:
3 x 400 / 50 - 60
V / Hz
Dimensions:
780 x 1800 / 2300 / 2800
mm
Weight:
700 / 850 / 1000
kg
