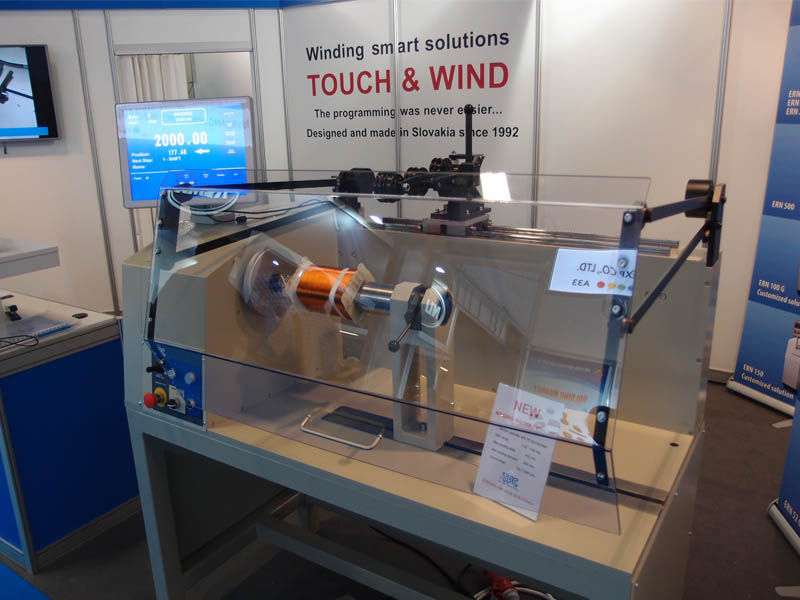

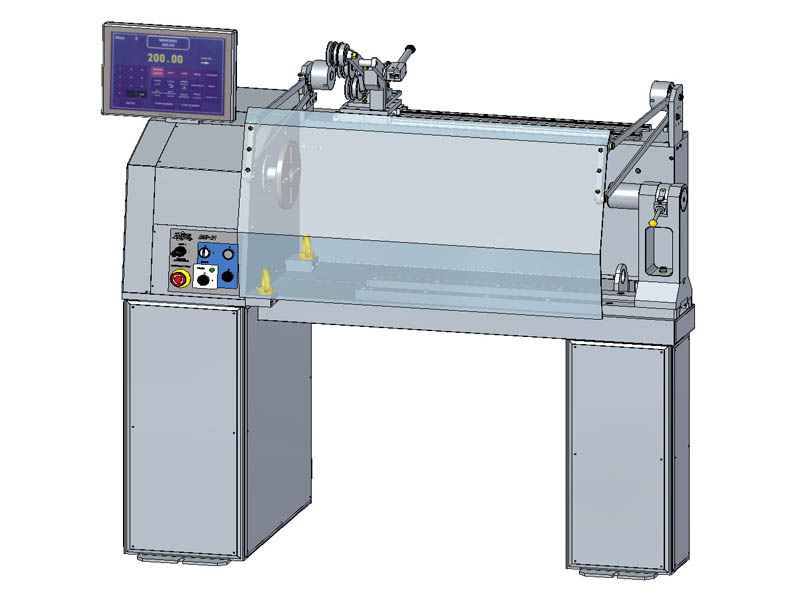

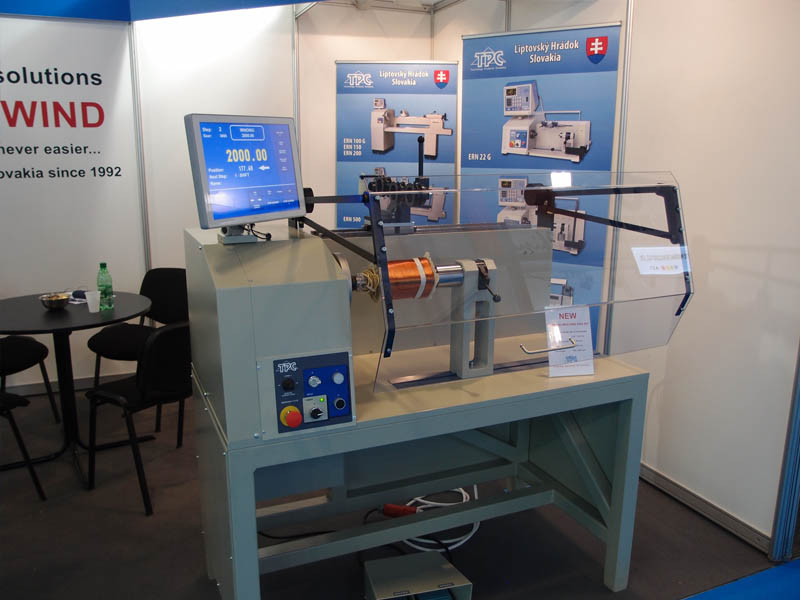

New model of floor type winding machine ERN 80 fills the gap between standard bench and floor-type machines. The machine is suitable for the production of heavy coils and transformers, bigger working space provides good handling with product.
- Max. torque 60 Nm, suitable for round wire diameter 5,0 mm and flat wires

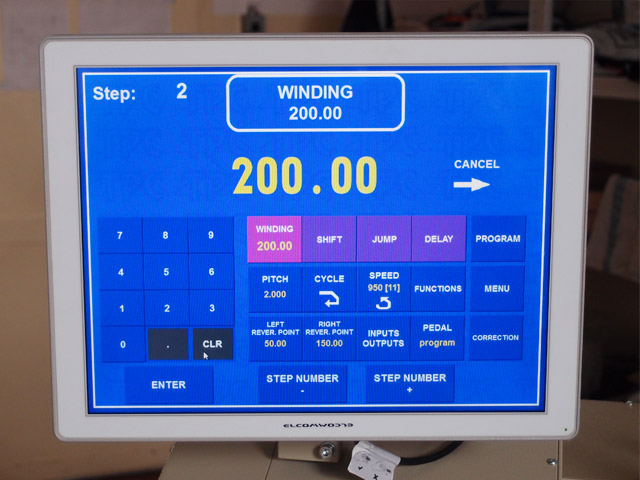

- Microprocessor controlled winding cycle, T-version controller
- All winding parameters programmable
- Accurate reversible counting and spindle positioning
- AC servo drive guarantees an excellent Start - Stop regime
- Simple operation, accuracy and reliability
Specification
Wire range:
0,02 - 5
mm
Pitch range:
0,008 - 40
mm/rev.
Winding width:
0,1 - 550
mm
Turn resolution:
0,01
rev.
Accuracy of spindle stop:
0,01
rev.
Speed range:
750 / 3000
rpm
Torque:
60 / 20
Nm
Distance between centers:
550
mm
Max. winding diameter:
600
mm
Power supply:
3 x 400 / 60
V / Hz
Dimensions:
1330 x 680 x 1600
mm
Weight:
300
kg
